For those who don’t know the tool: 3ds Max is a Windows DCC for modeling, animation, and rendering, commonly paired with Arnold and add-ons like tyFlow for archviz, motion graphics, and VFX handoffs.
What 2027.1 actually changes
3ds Max 2027.1 ships as a minor update focused on tightening outputs and expanding a couple of procedural building blocks rather than adding a brand-new workflow. The headline is Smart Bevel output quality. The update targets artifacts that show up on more complex geometry.
The other modeling-side change lands in the Data Channel modifier. Three new operators join the stack for converting data between formats, which matters when a setup depends on passing values through different data types without writing external scripts.
This is the kind of update that can quietly fix daily annoyances. It is also the kind that can quietly break a toolchain if you rely on exact behavior in procedural stacks, so test it on real scenes before you let it anywhere near teh shot schedule.

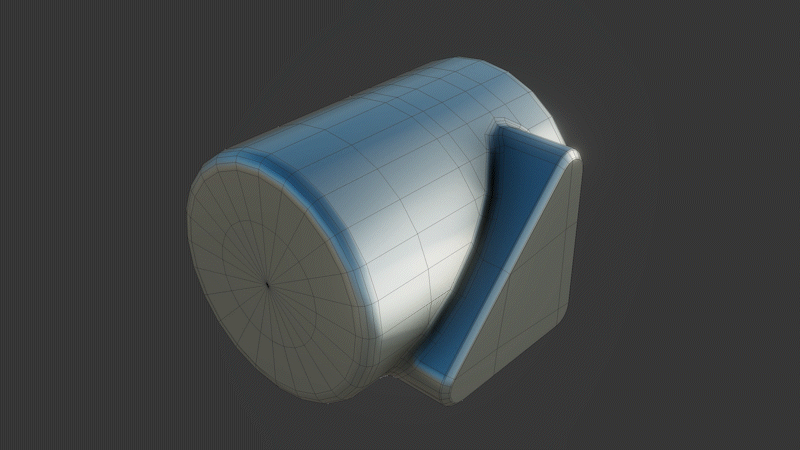

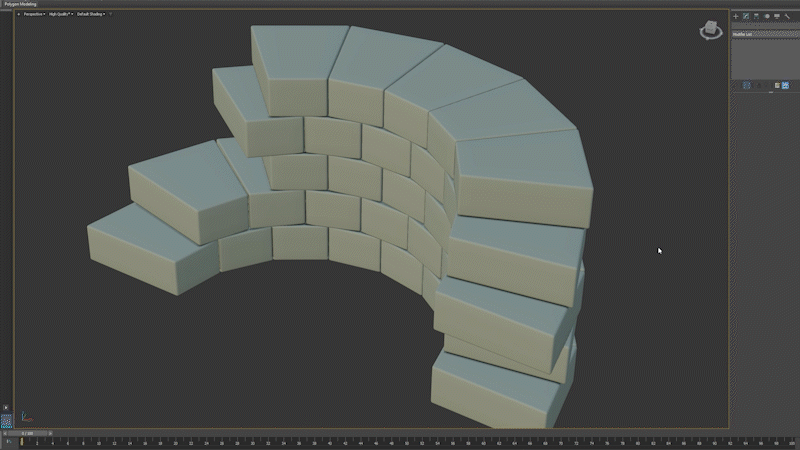

Smart Bevel: fewer ugly surprises
Smart Bevel arrived in the base 2027 release as a bevel-generation system aimed at post-Boolean intersections. In 2027.1, the focus stays on the output itself. The update wants to lessen the amount of artifacts that appear when Smart Bevel runs across more complex intersections and topology, with the stated goal (! Not tested) of reducing those artifacts rather than expanding the tool with new controls.
If your scenes lean on Boolean-heavy hard surface work, this kind of quality pass can mean less time hunting for shading glitches and less manual cleanup after the fact. If your pipeline bakes normals or exports to realtime, it can also mean more stable downstream results, since bevel quality tends to leak into everything from edge highlights to tangent space shading.
Data Channel: three new converters
The Data Channel modifier is the procedural playground for people who like building their own operators instead of clicking the same menu five hundred times. In 3ds Max 2027.1, it gains three new operators described as “converters” between data formats.
They are:; Float_to_Point3, FloatOP and PointOP, and to quote Adsk itself: “Float_to_Point3 converts a float channel into a Point3 channel. FloatOp and PointOp (a point 3 operation) let you drive changes to float and Point3 data through the DCM.”
In practice, Data Channel setups often hit friction when one part of the stack expects a different data type than the previous node outputs. Conversions sound boring until you are stuck doing workarounds for something as simple as routing a float into a vector-like structure or adapting a value for a later operator. These new operators are supposed to be a way to move data between formats inside the modifier stack.
Arnold integration: new core, plus a cloud experiment
Arnold for 3ds Max updates to MAXtoA 5.9.2.0, a feature release built on Arnold 7.5.1.1. It includes a Tech Preview of Flow Render, described as an Arnold cloud-rendering solution, plus support for tyFlow volumes. It includes a Tech Preview of Flow Render, described as an Arnold cloud-rendering solution, plus support for tyFlow volumes.
Here is the Tutorial for the Maya-Version of Flow Renderer:
Flow Render comes with 2400 minutes per user per month of render time for testing and evaluation, with feedback routed to the Arnold feedback forums.

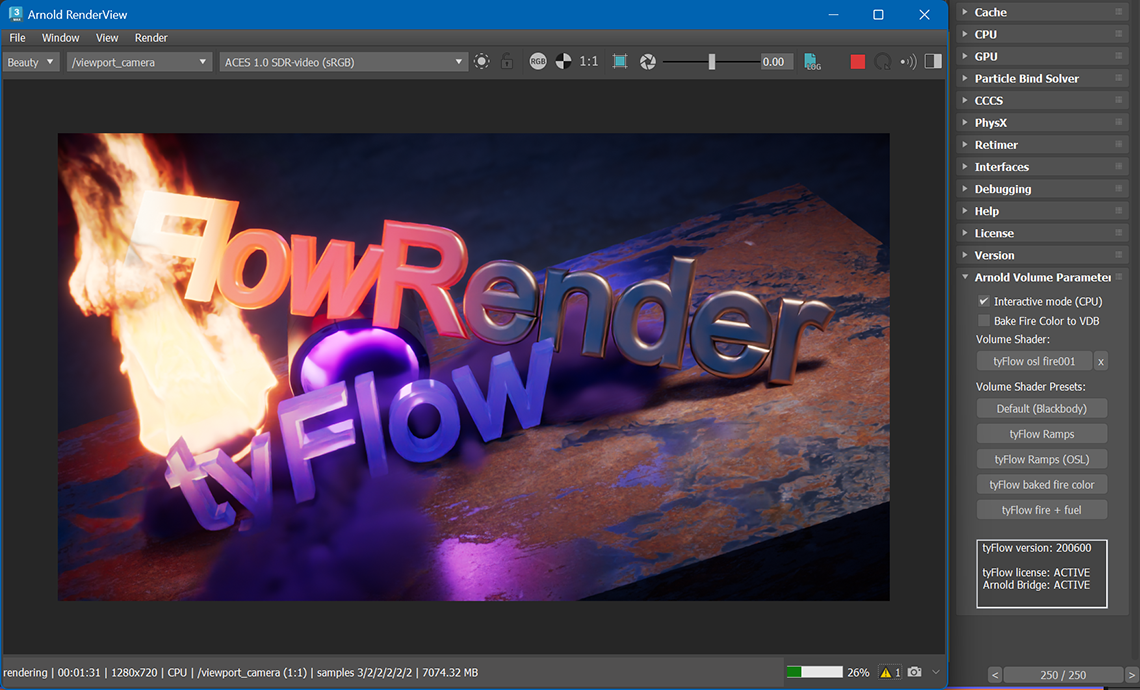

MAXtoA also adds tyFlow volume support via a new tyFlow rollout that lets you assign an Arnold volume shader. The default uses a standard Blackbody setup driven by the tyFlow temperature channel, and there are presets that either bake an approximation of tyFlow ramps into editable Arnold ramps or generate a non-editable OSL shader to more closely match tyFlow’s look.
On the rendering side, the aov_write_rgb, aov_write_float, and aov_write_rgba shader nodes now work inside volume shader networks, with the volume raymarcher collecting and integrating AOV closures using Beer-Lambert weighting. Flat outputs like EXR and TIFF and deep EXR are supported, and Arnold logs a warning if conflicting blend_opacity settings write to the same AOV name from both surface and volume shaders. The notes also call out about a 16 percent overhead with two active volume AOVs at fine step sizes.

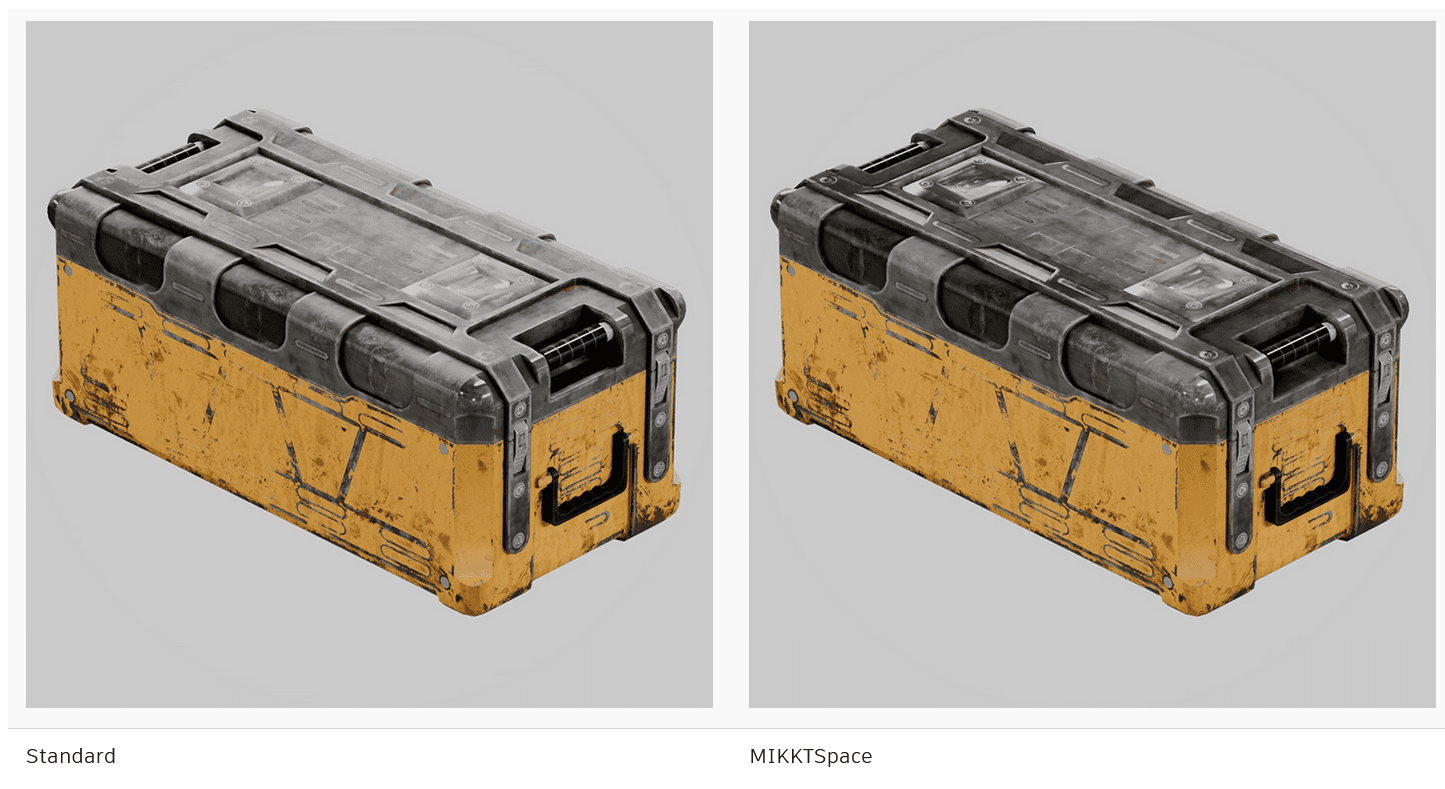

Normal_map gains a tangent_space_type option that adds MIKKTSpace normal mapping support, with a standard mode preserving prior behavior and a mikk mode evaluating normal maps using MIKKTSpace data for consistent shading across applications. CPU renders on Windows are also optimized, with most scenes showing faster render times.
Flow Render comes with 2400 minutes per user per month of render time for testing and evaluation, with feedback routed to the Arnold feedback forums.
On the rendering side, the aov_write_rgb, aov_write_float, and aov_write_rgba shader nodes now work inside volume shader networks, with the volume raymarcher collecting and integrating AOV closures using Beer-Lambert weighting. Flat outputs like EXR and TIFF and deep EXR are supported, and Arnold logs a warning if conflicting blend_opacity settings write to the same AOV name from both surface and volume shaders. The notes also call out about a 16 percent overhead with two active volume AOVs at fine step sizes.
Normal_map gains a tangent_space_type option that adds MIKKTSpace normal mapping support, with a standard mode preserving prior behavior and a mikk mode evaluating normal maps using MIKKTSpace data for consistent shading across applications. CPU renders on Windows are also optimized, with most scenes showing faster render times.
tyFlow volumes get a nod
One extra detail in the Arnold integration update is support for tyFlow volumes, enabling rendering of smoke and fire simulated with tyFlow’s sparse fluid engine.
For anyone doing effects lookdev directly in Max, volume compatibility is not glamorous, but it is the difference between a nice sim preview and an actual final render path. If you rely on tyFlow for quick-turn sims, this is worth a controlled test with your typical render settings and AOV requirements.
Availability, licensing, and the fine print you still have to read
3ds Max 2027.1 is compatible with Windows 11, and offered as rental-only. Subscriptions start at $255 per month or $2,010 per year. An Indie subscription option is available at $330 per year for qualifying artists under the stated income and project value thresholds.
None of this changes the basic rule for production: new tools and innovations should be tested before use in production, ideally with representative scenes, caches, and handoffs across your full pipeline.
